Orange pi 4 SBC (or similar)
Memory Card
Cooler
WiFi
Case
- Rockchip RK3399 (28nm HKMG process)
- 6-core ARM® 64-bit processor ,main frequency speeds up to 2.0GHz
- Based on the large and small size core architecture of big.LITTLE:
- Dual-core Cortex-A72 (large core) + Quad-core Cortex-A53 (small core)
- MB Orange Pi 4a
- RK808 PMU
- Output: 3.5mm Jack and HDMI2.0a
- Input: MIC
- Mali-T864 GPU
- Supports OpenGL ES1.1/2.0/3.0/3.1,
Micro SD memory card
- 256 GB Mini SD Card Memory Card Class10 633x T Flash Card
Dimensions: 25x25x7mm; Bearing Type: Sleeve; Connector: Dupont 2pin
Rated Voltage: DC 5V; Rated Current: 0.15Amp±10%; Rated Speed: 11000RPM±10%
Air flow: 2.05CFM; Noise: 24dBA±10%; Life: 35000 hours
Cable Length: 15cm; Weight: 6g/pcs
Rated Voltage: DC 5V; Rated Current: 0.15Amp±10%; Rated Speed: 11000RPM±10%
Air flow: 2.05CFM; Noise: 24dBA±10%; Life: 35000 hours
Cable Length: 15cm; Weight: 6g/pcs
IEEE 802.11: Wi-Fi 4 (b/g/n); Wi-Fi Frequency: 2.4GHz; Antenna: 1T1R; Data Throughput: 150 Mbit/sradiator
4 * 0.35 Inch X 0.35 Inch (8.9 Mm X 8.9 Mm) Aluminum Heat Sink
4 * 0.56 Inch X 0.56 Inch (14.2 Mm X 14.2 Mm) Aluminum Heat Sink
4 * 0.35 Inch X 0.35 Inch (8.9 Mm X 8.9 Mm) Aluminum Heat Sink
4 * 0.56 Inch X 0.56 Inch (14.2 Mm X 14.2 Mm) Aluminum Heat Sink
Material PETG
Size 64x93x27mm
Cooler size 25x25x7
Size 64x93x27mm
Cooler size 25x25x7

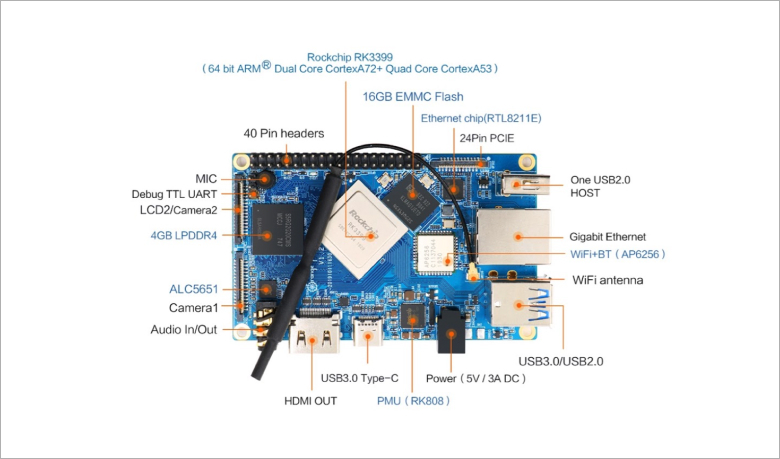

TOP VIEW

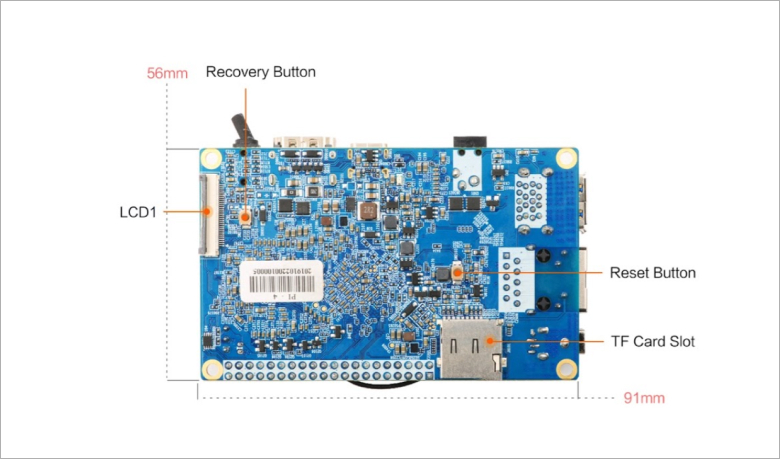

BOTTOM VIEW
ARCHITECTURE OPERATION SYSTEM
ARM64 ARMBIAN-HIRSUTE
SERVER
ROUTER
CLIENT
Anbox
Telegram Xabber APG K-9 mail Mumla Tor browser Firefox
Xfce4 gui
Psi+ Mumble client Thunderbird GnuPG Tor browser Firefox Telegram
WEB gui
Demonstration of main services of BLACKBOX
